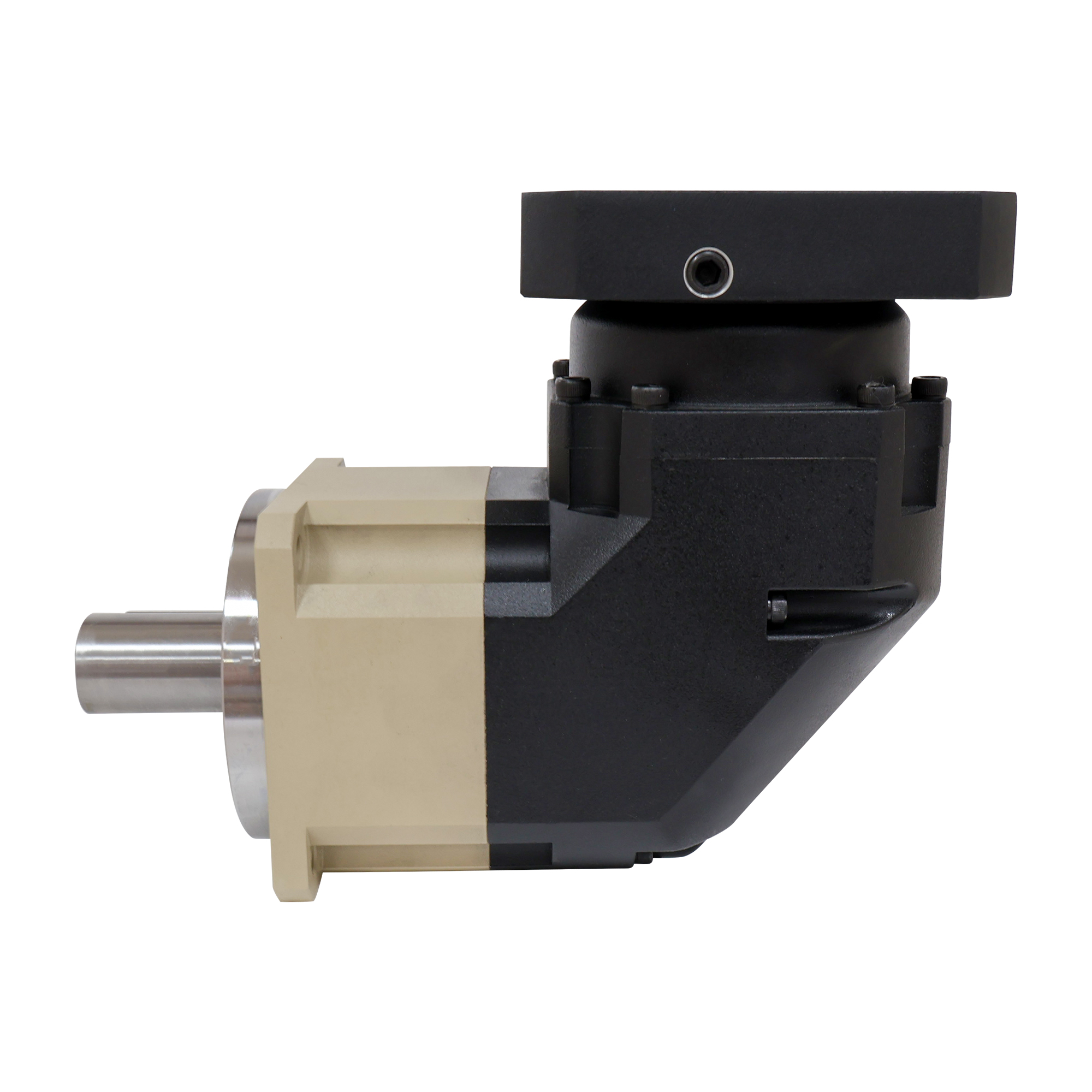

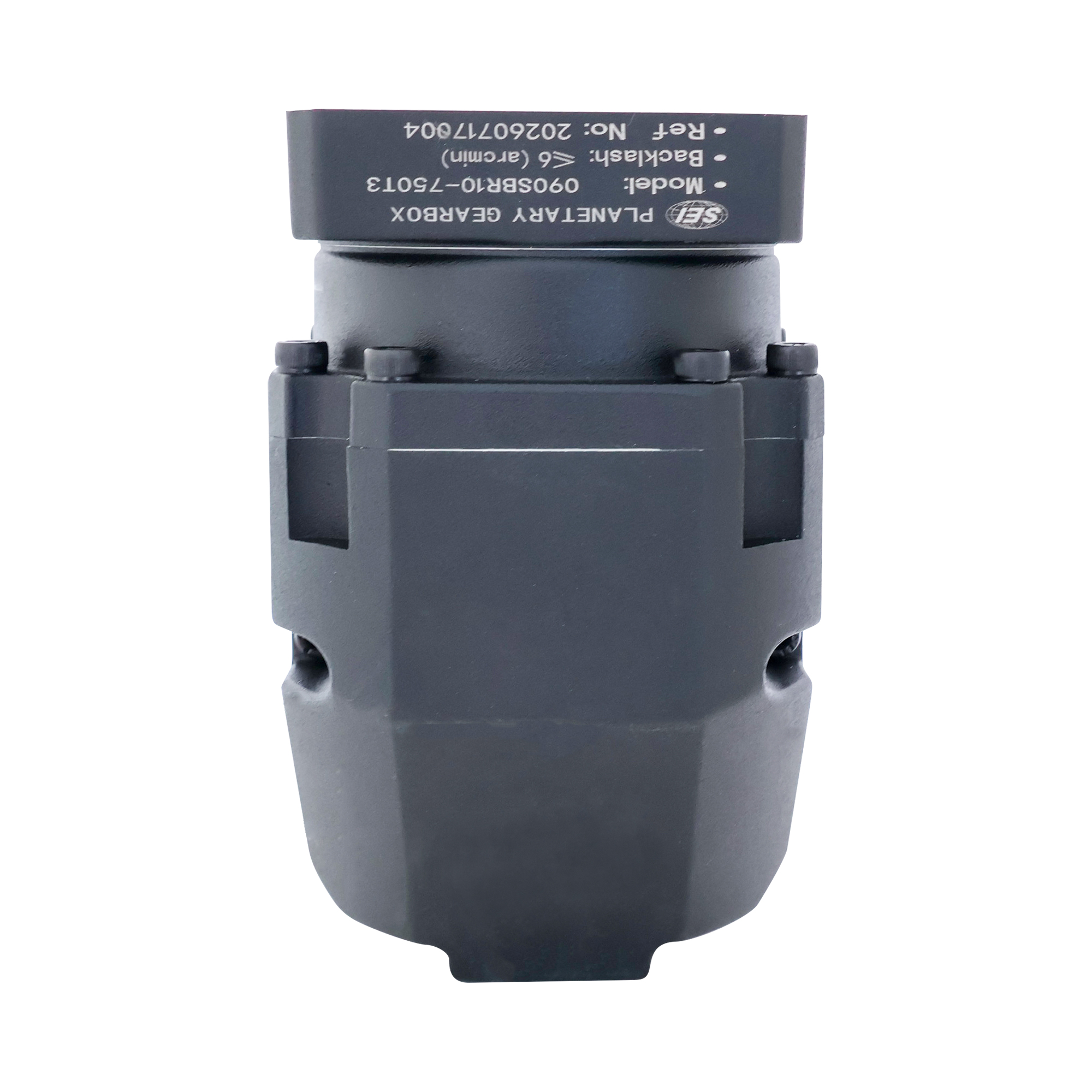

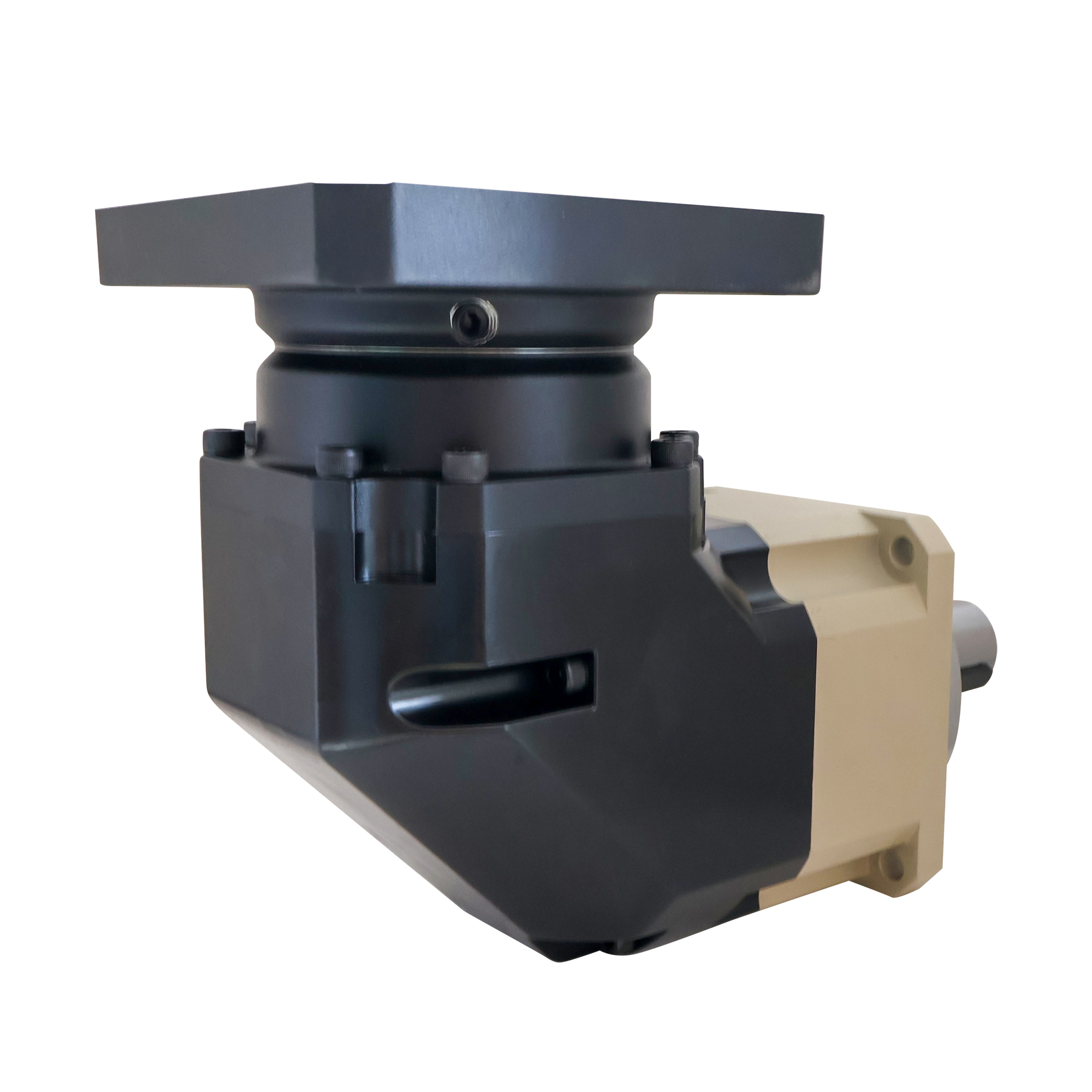

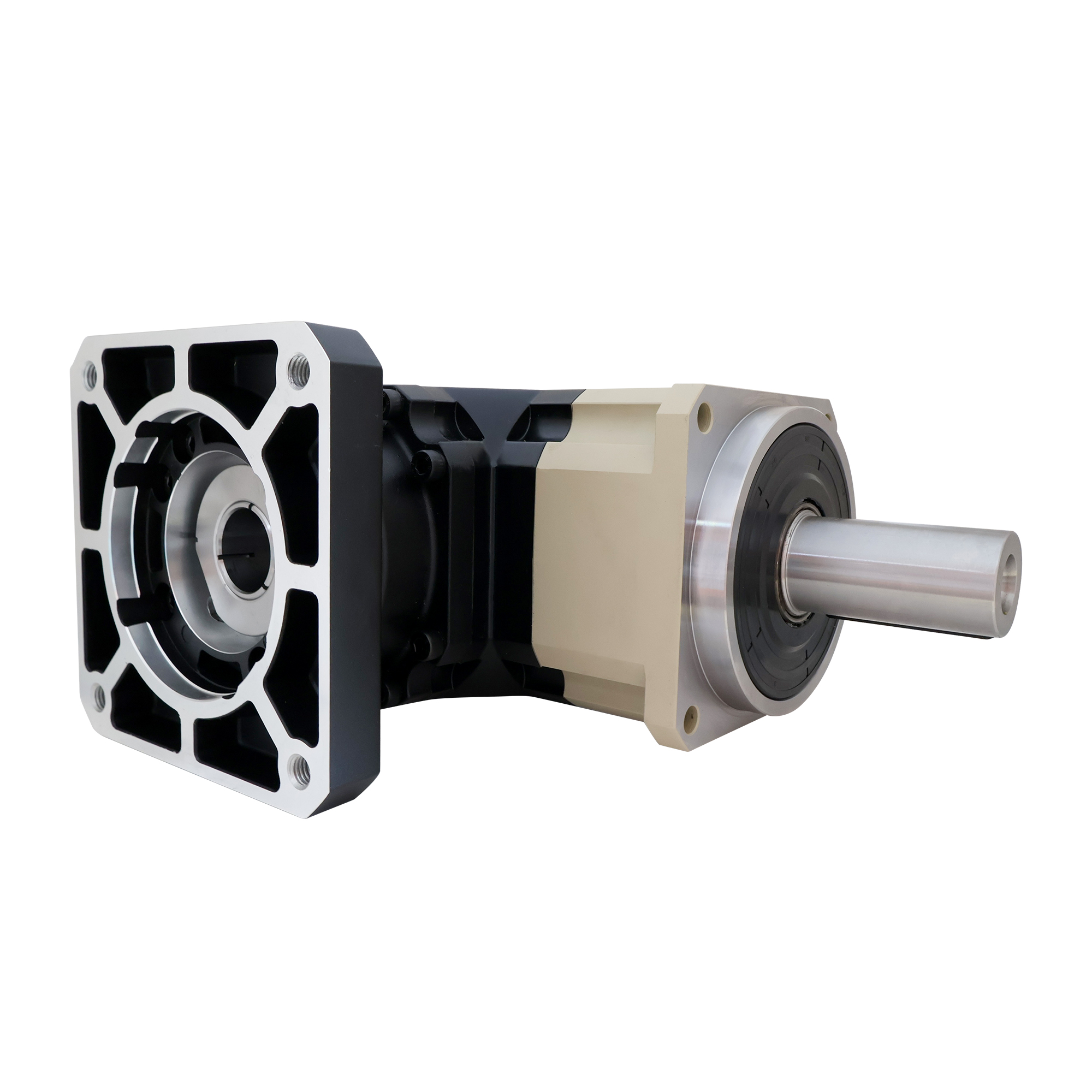

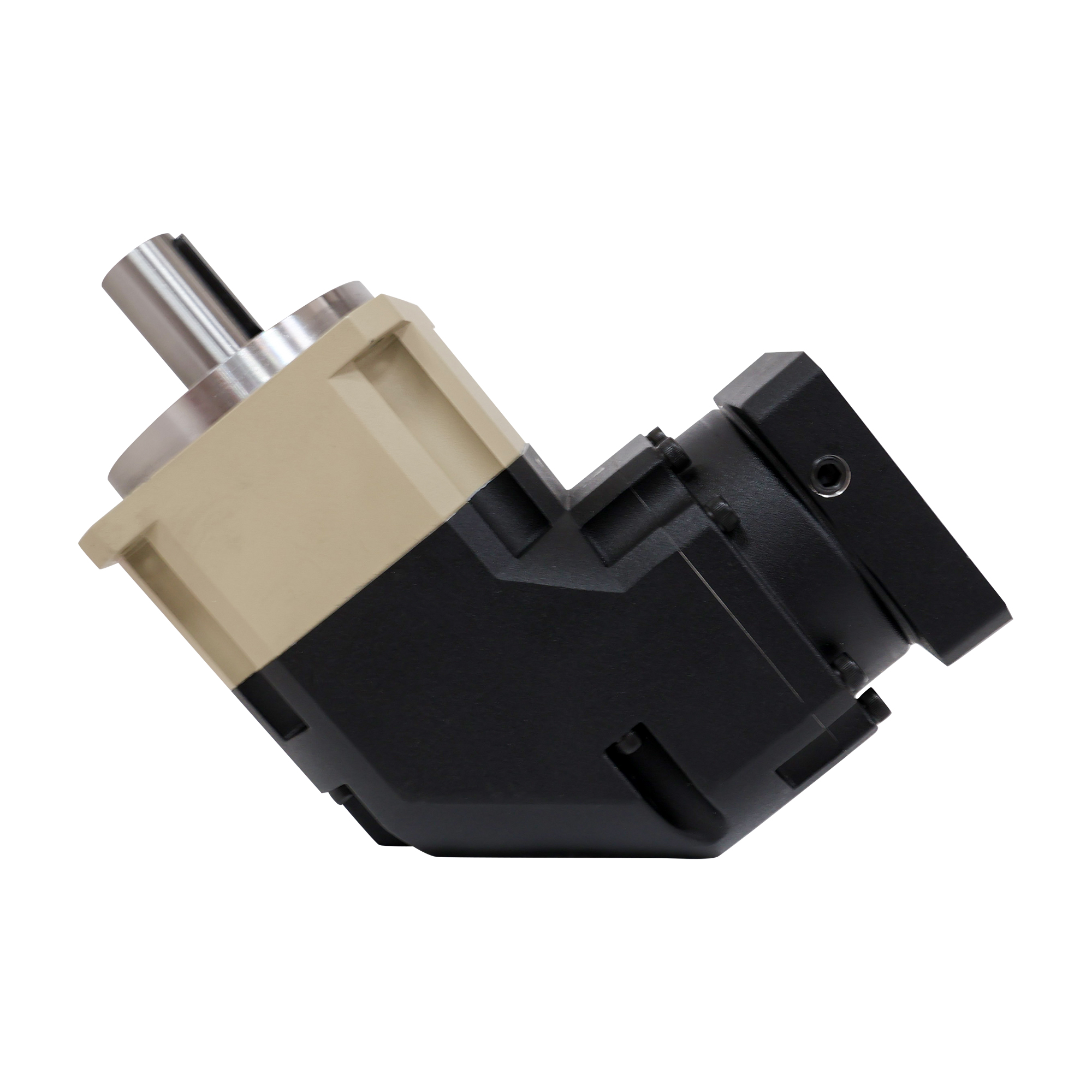

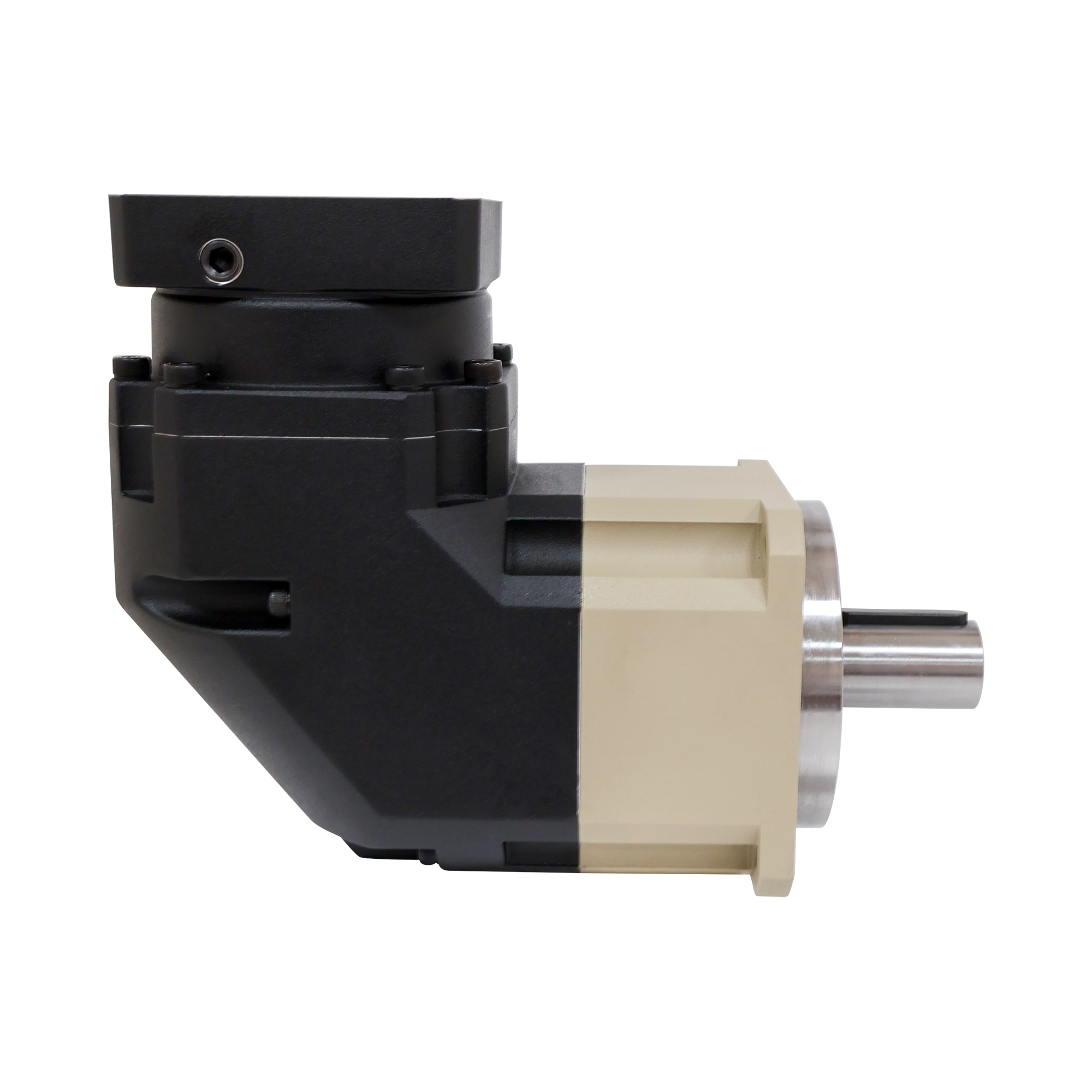

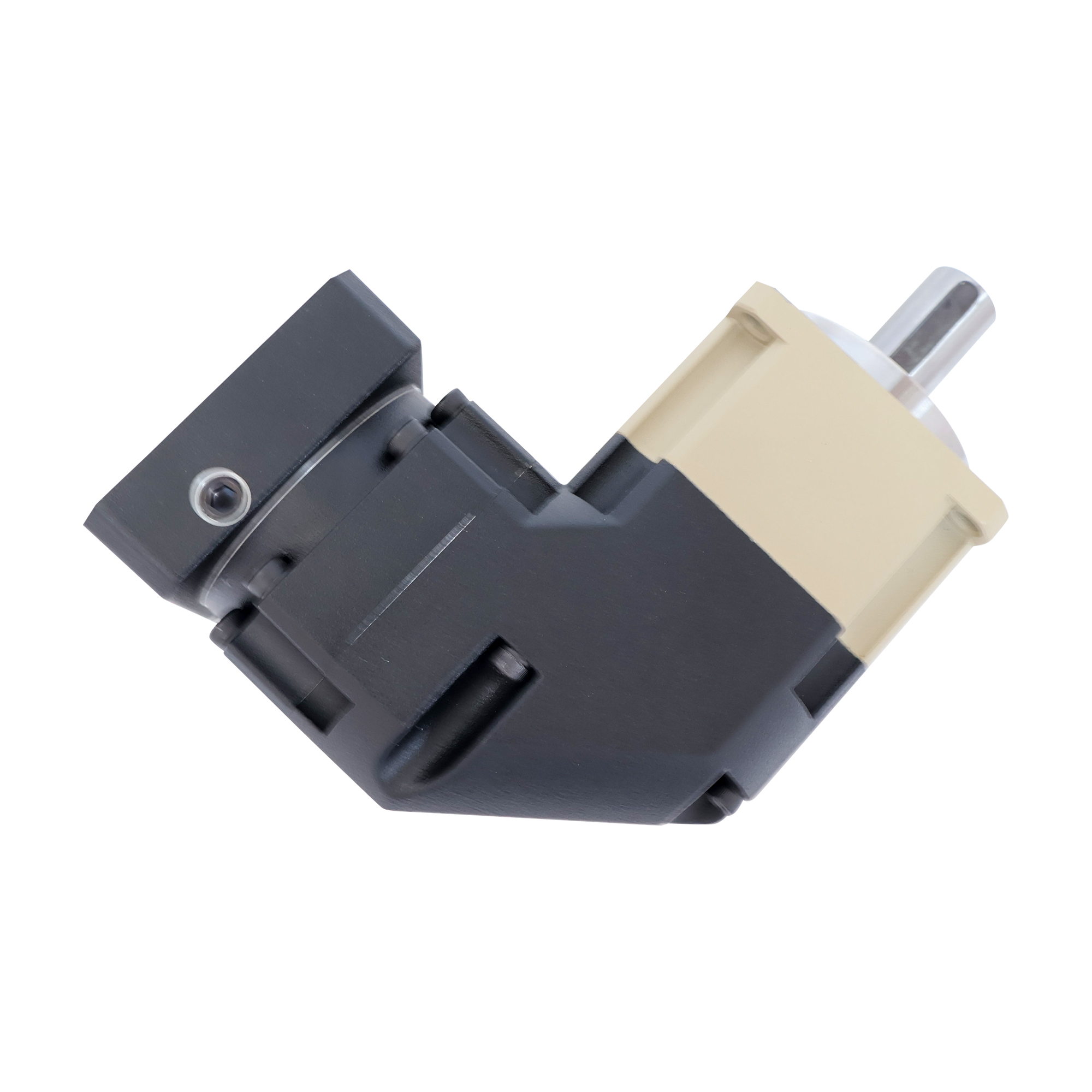

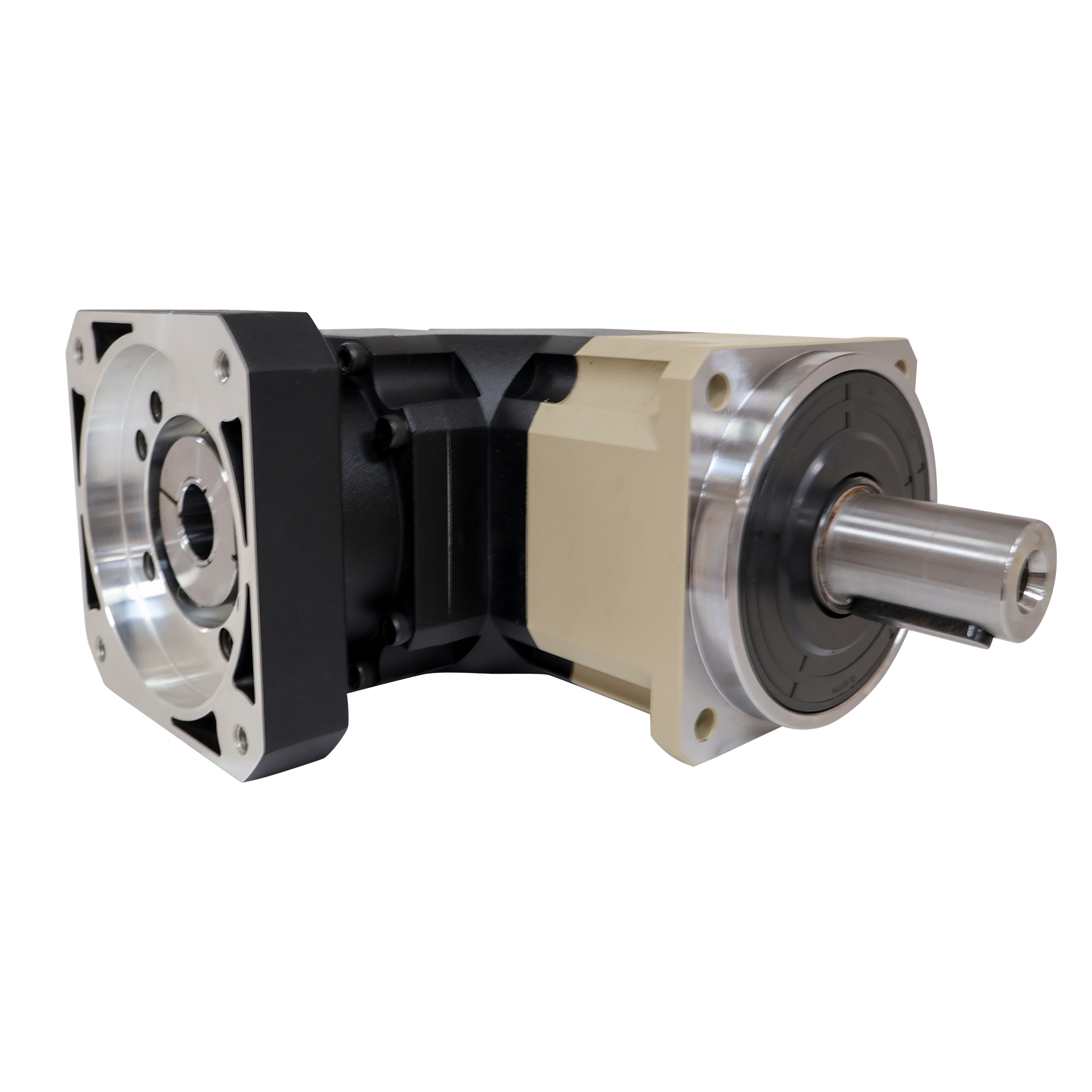

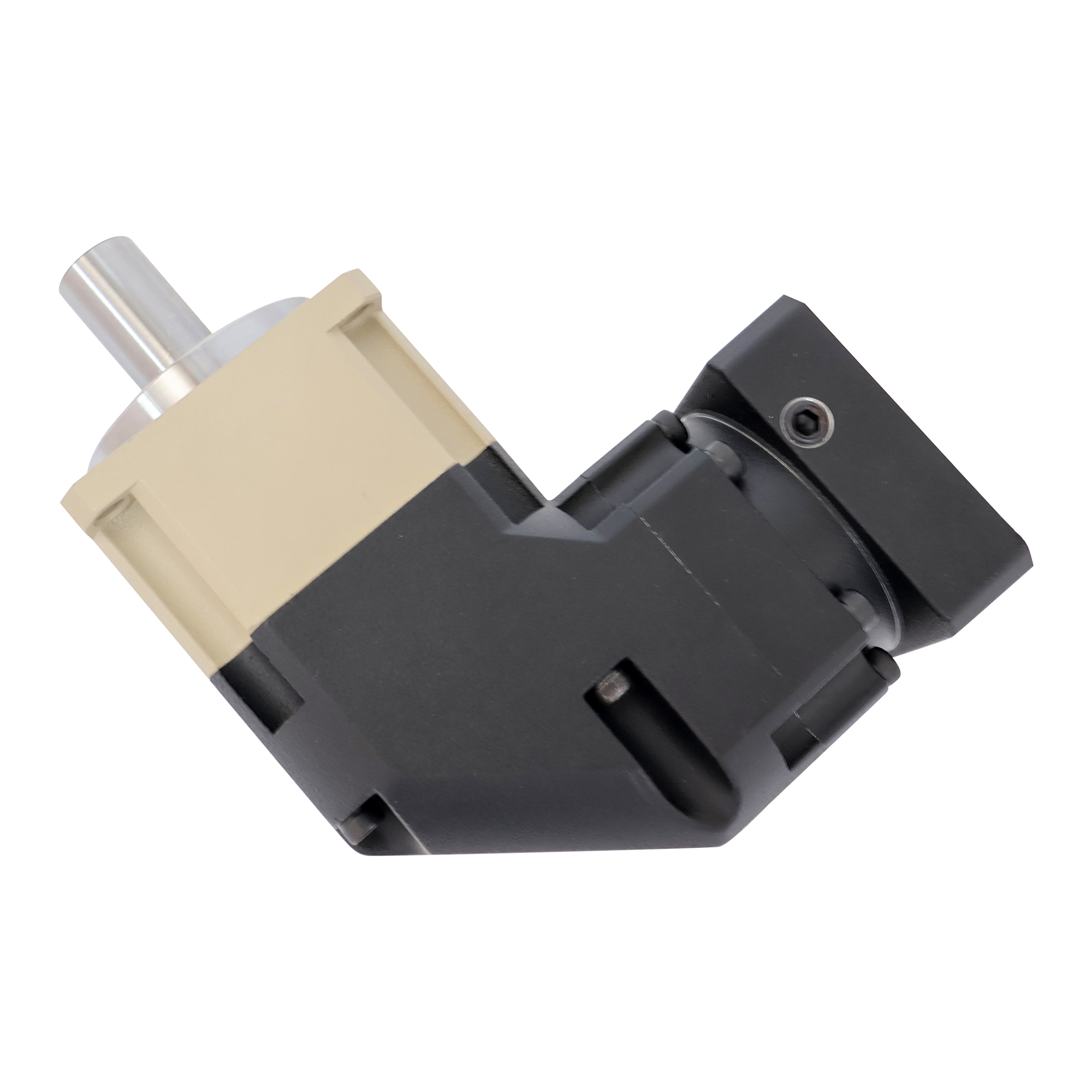

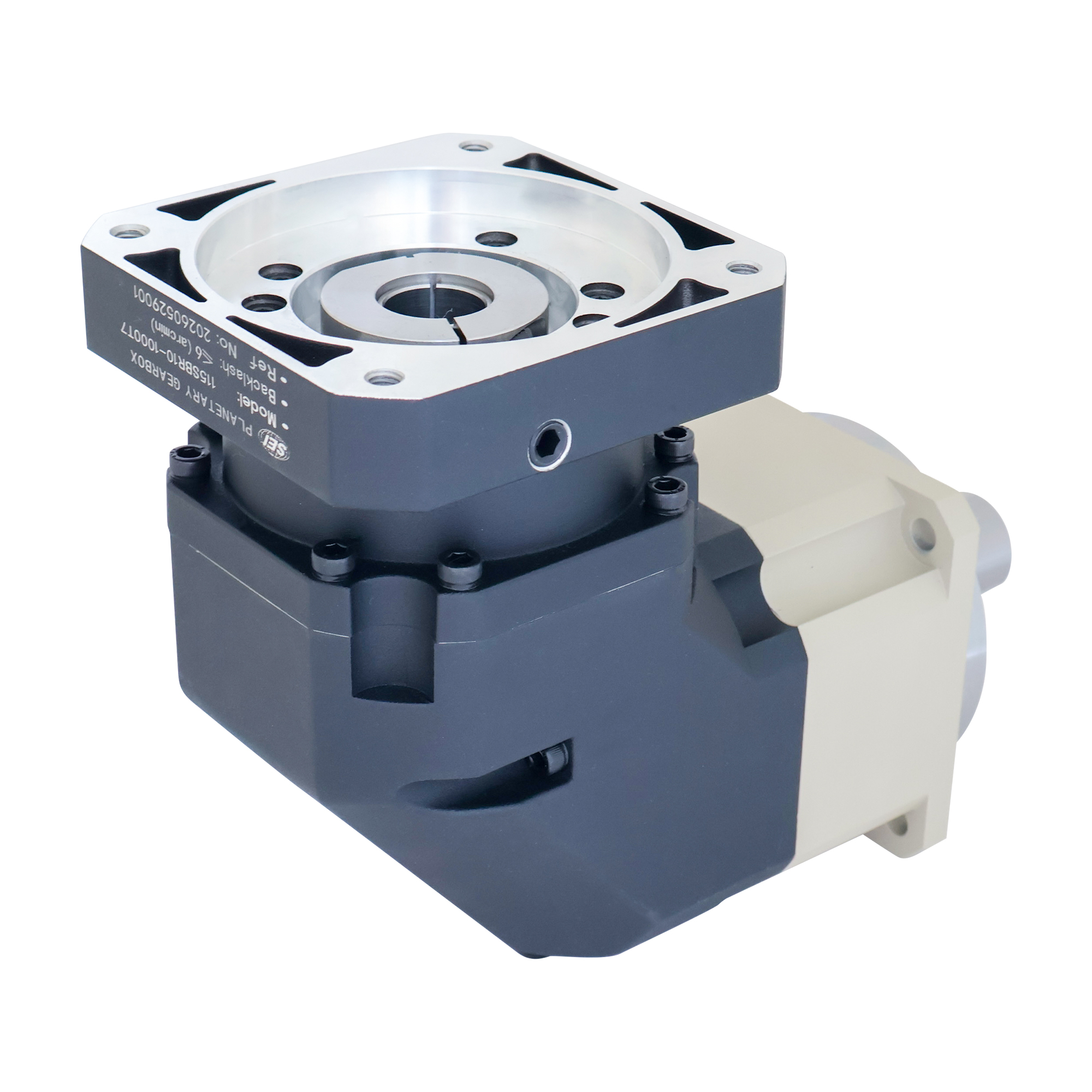

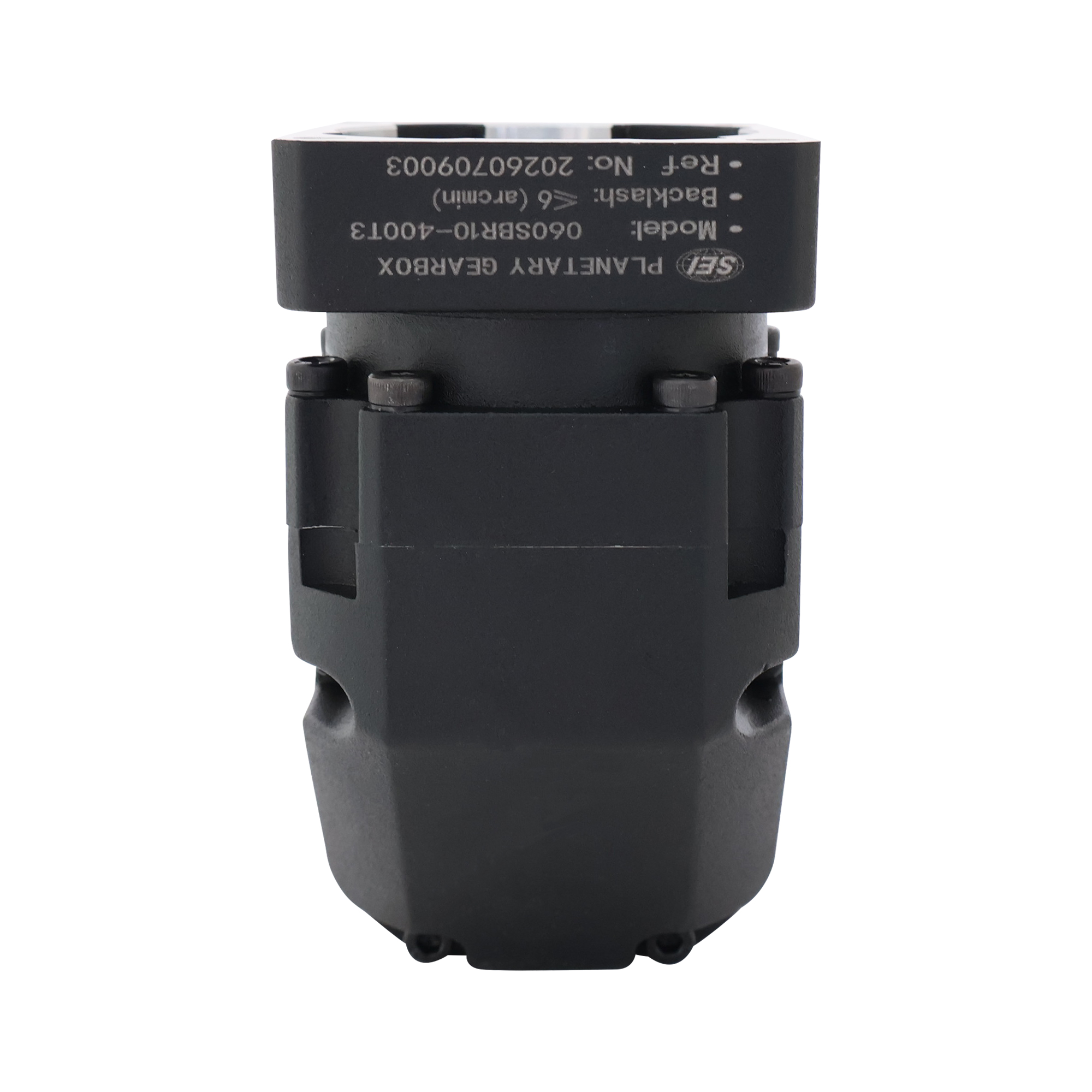

SBR Series Right-Angle Planetary Gearboxes

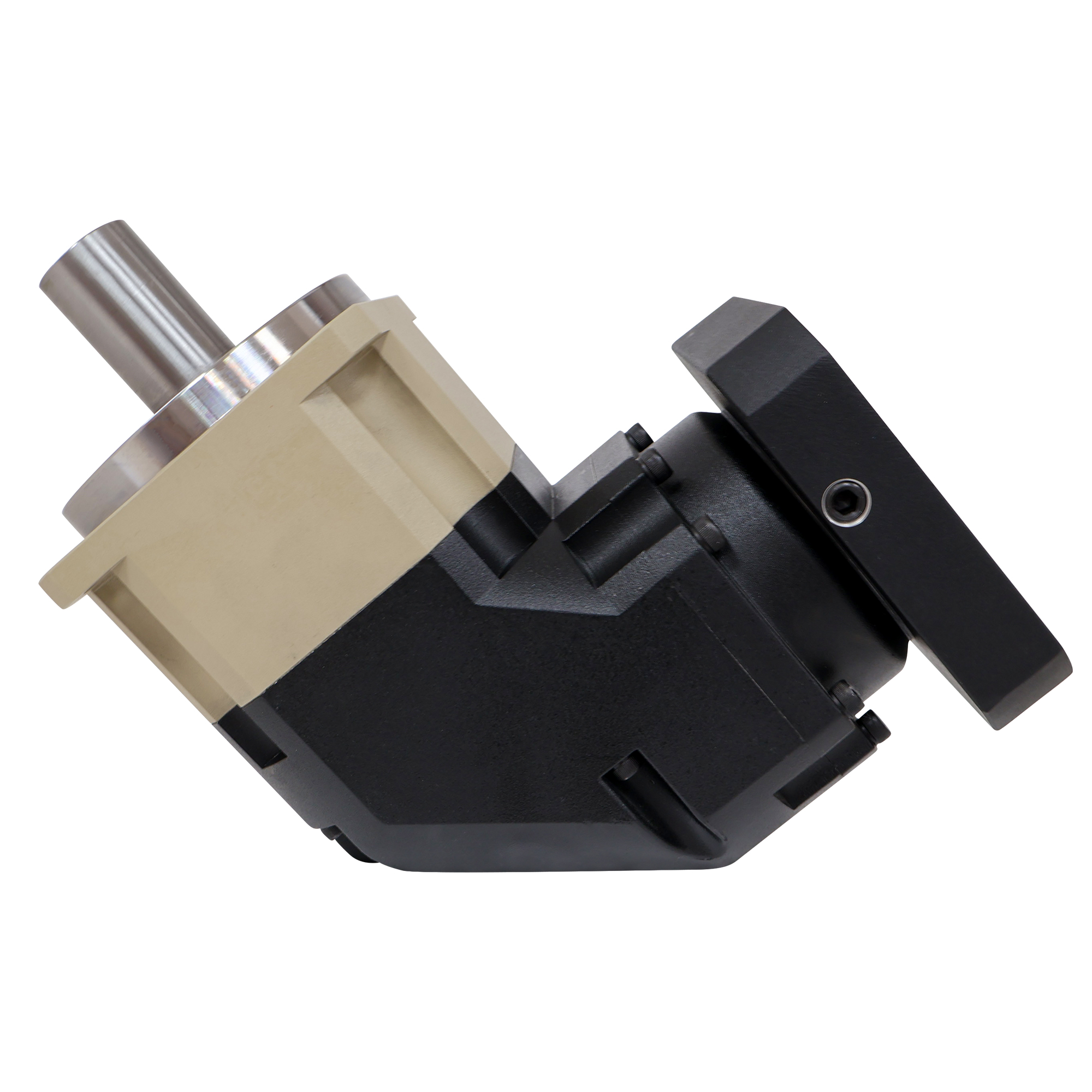

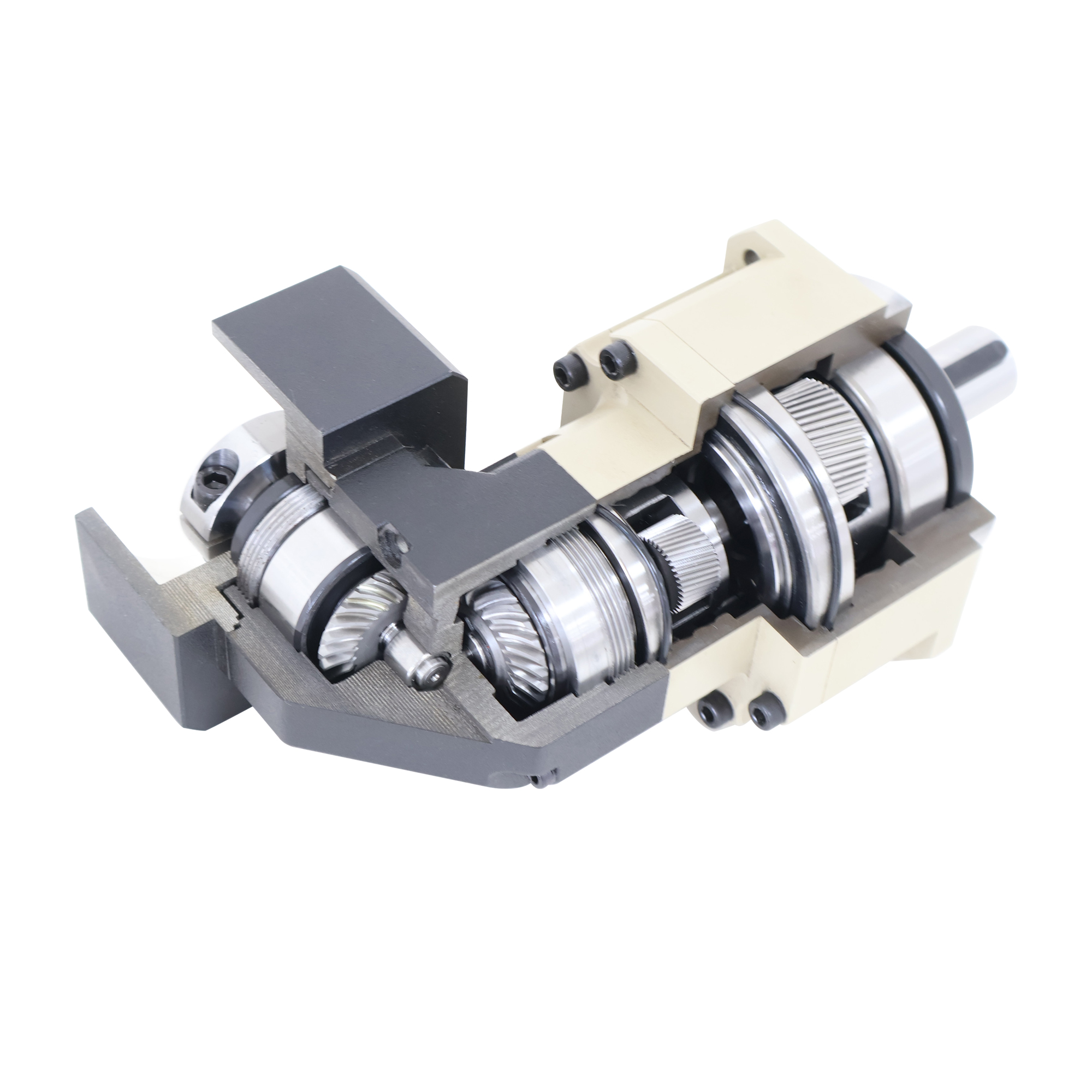

The SBR Series combines a planetary reduction stage with a right-angle bevel output box, enabling compact 90° power transmission for space-constrained machine layouts. Each unit integrates output bevel gear, right-angle box, input bevel gear, locking device, and input coupling into a single assembly.

Available in frame sizes 060, 090, 115, 142, 180, and 220 with single-stage ratios from 3:1 to 20:1 and two-stage ratios from 25:1 to 200:1. Rated output torque ranges from 90 Nm (060SBR at 3:1) to 2,000 Nm (220SBR at 3:1).

Request a Quote call(408) 980-9822

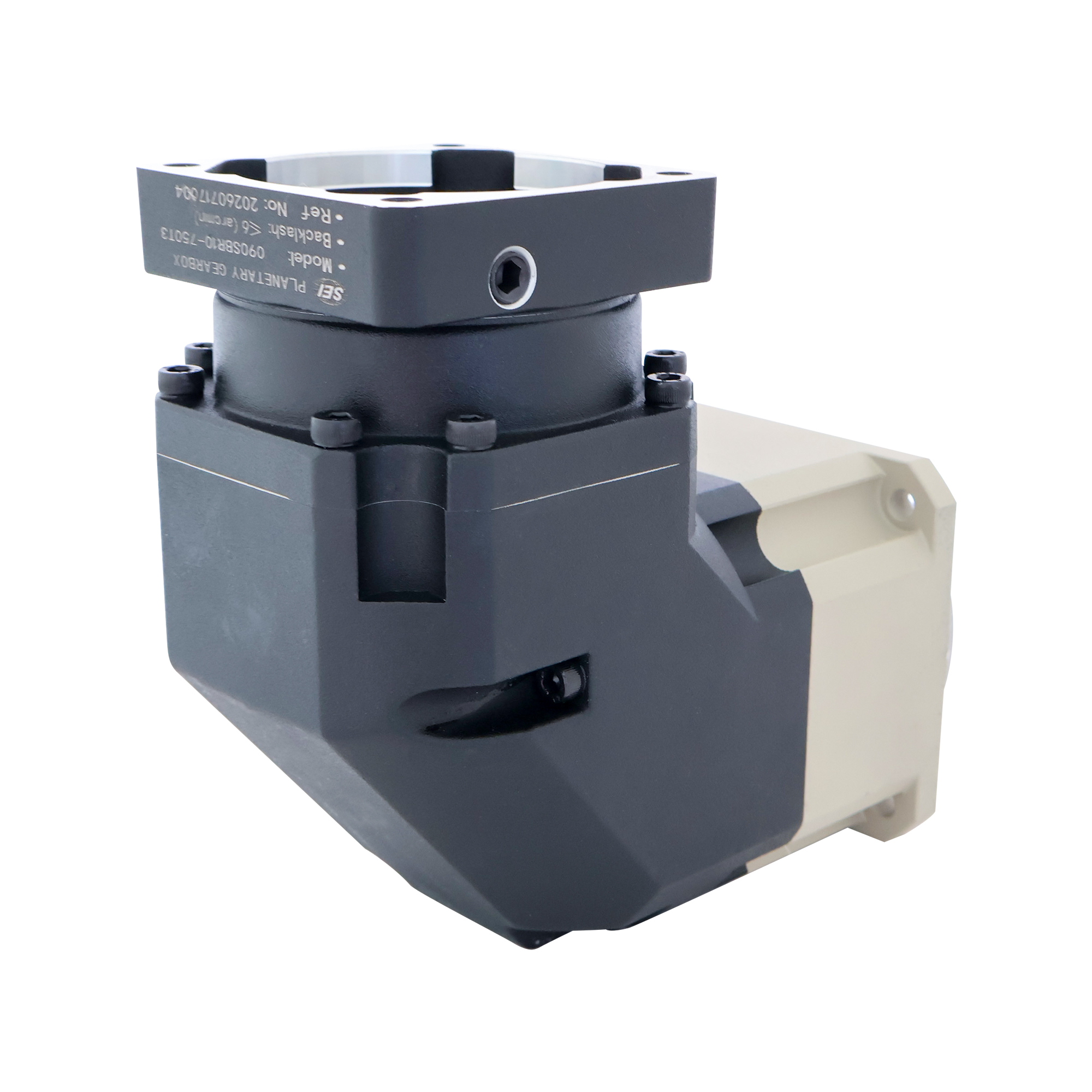

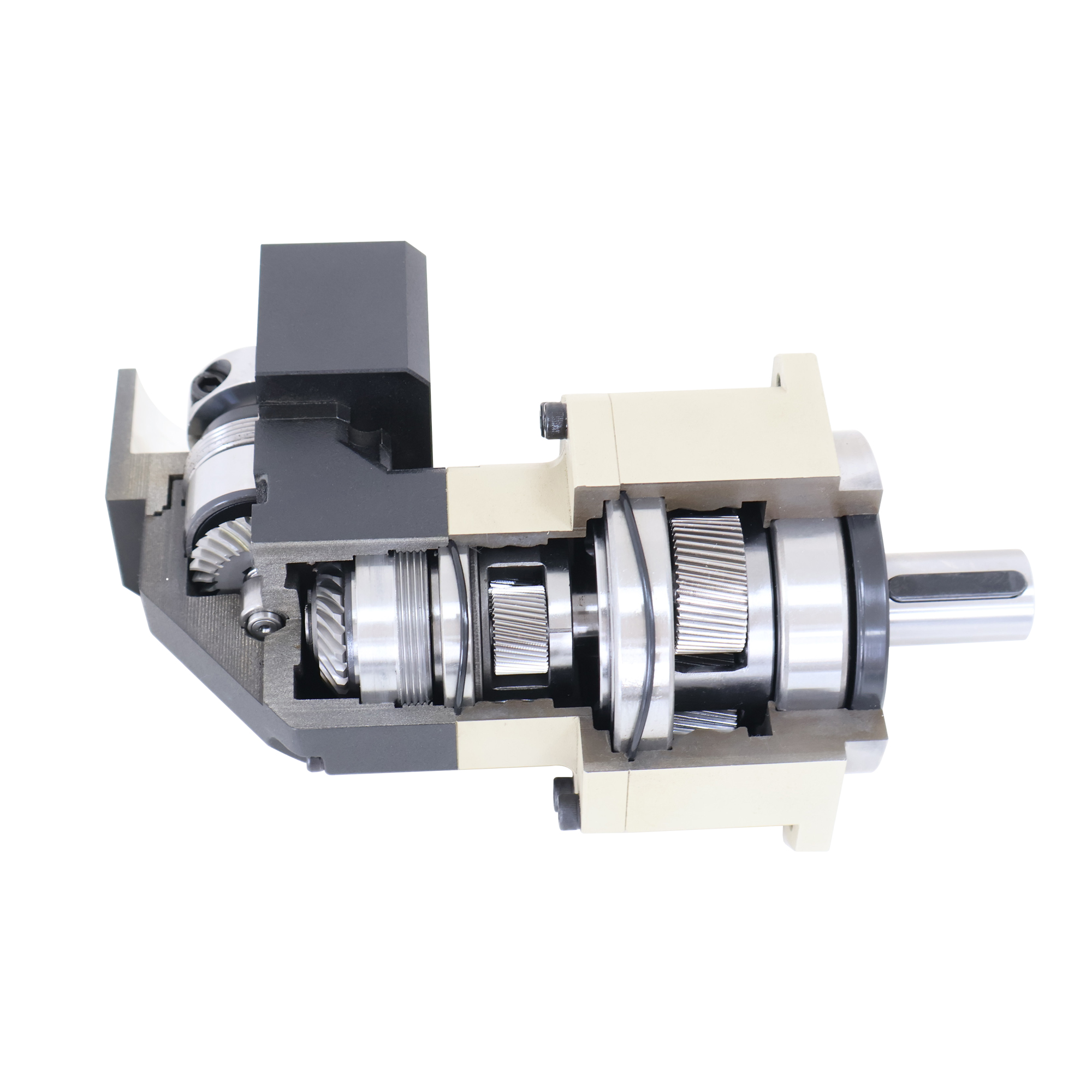

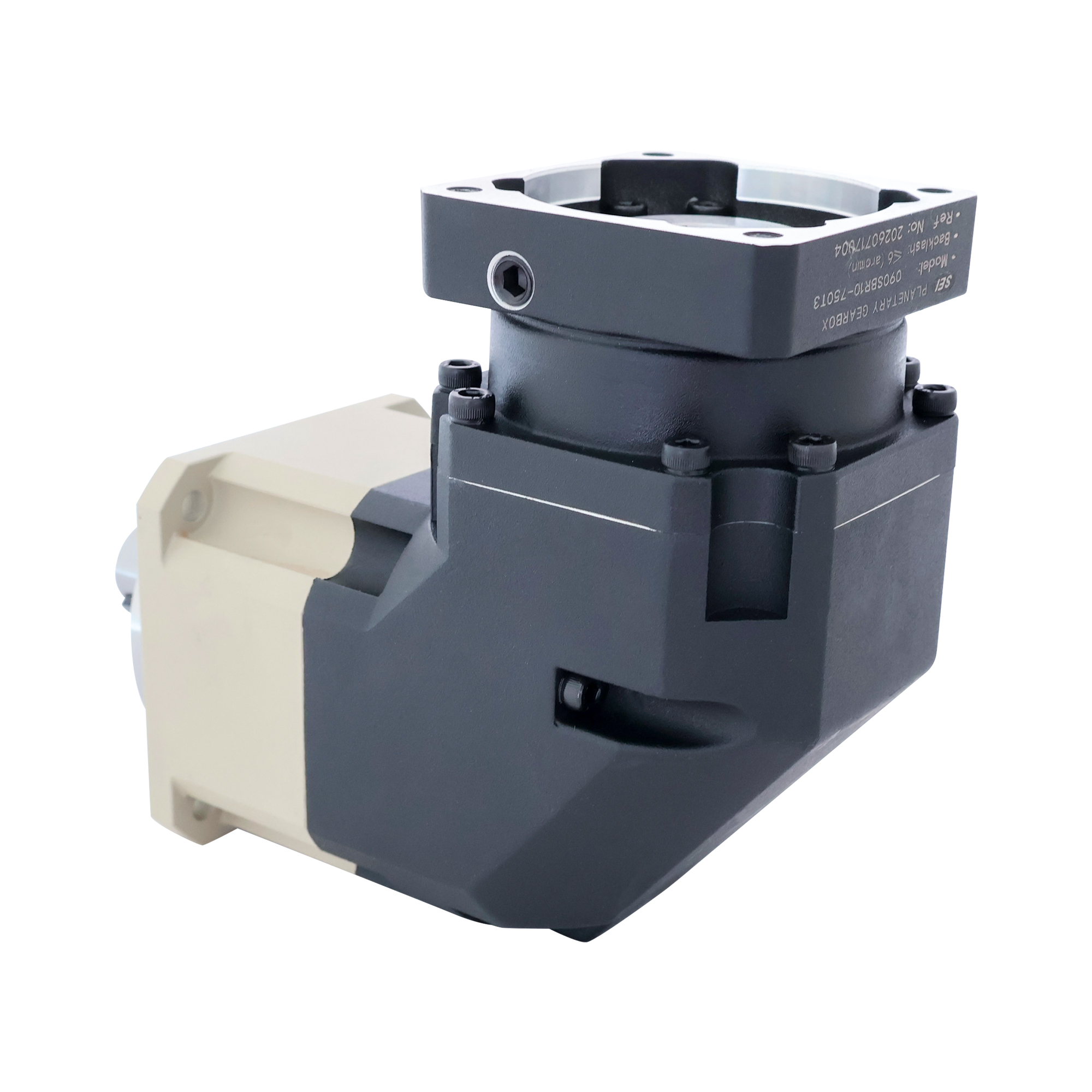

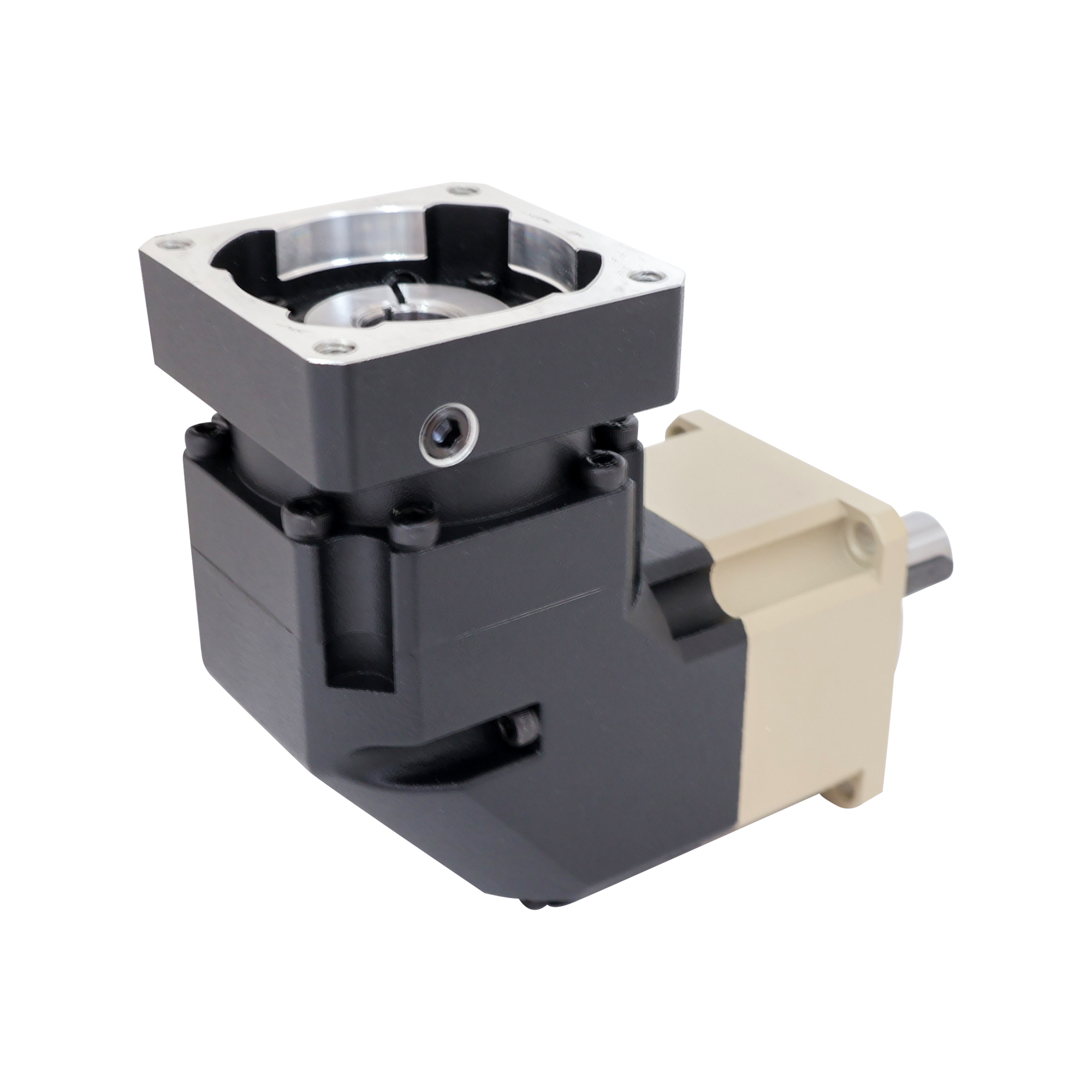

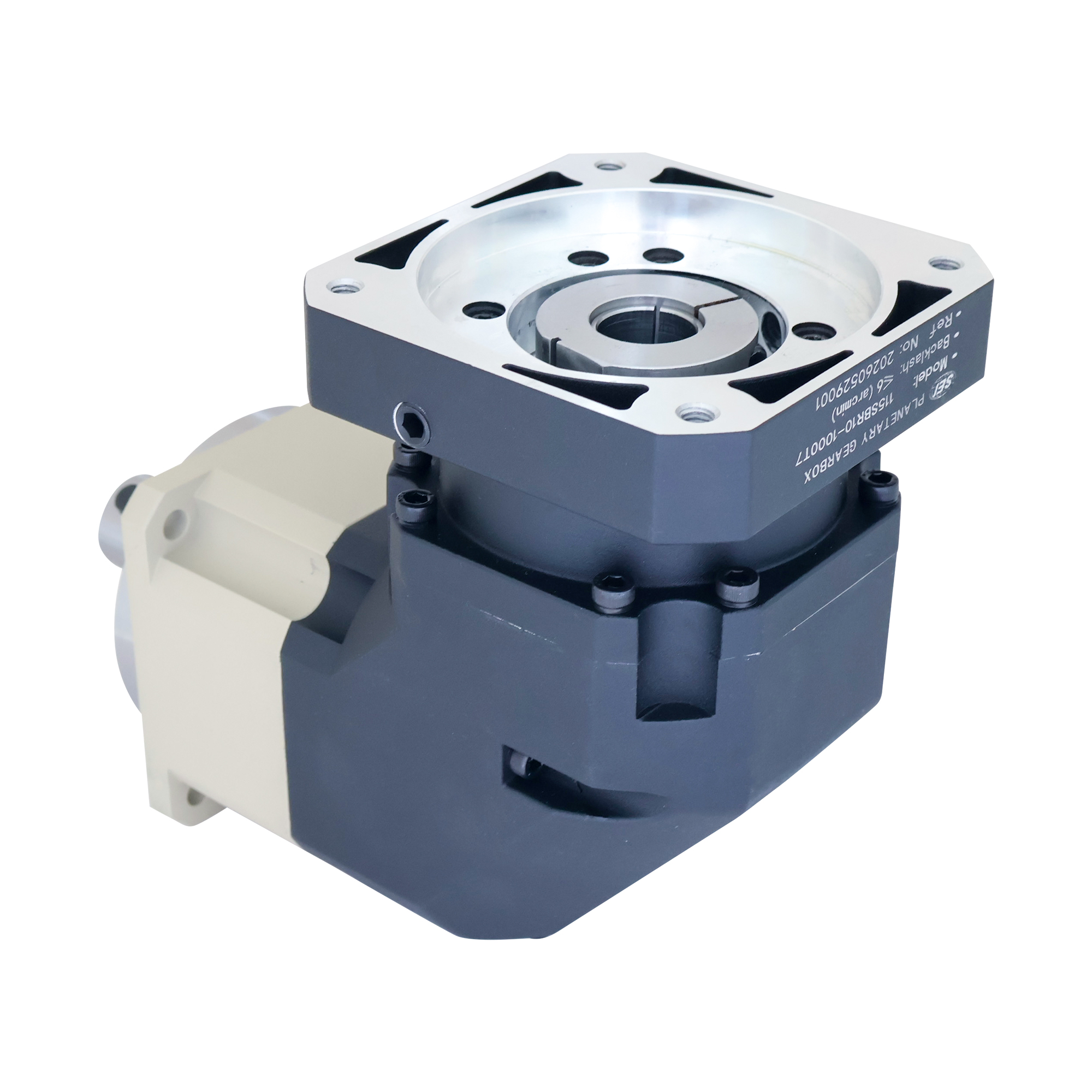

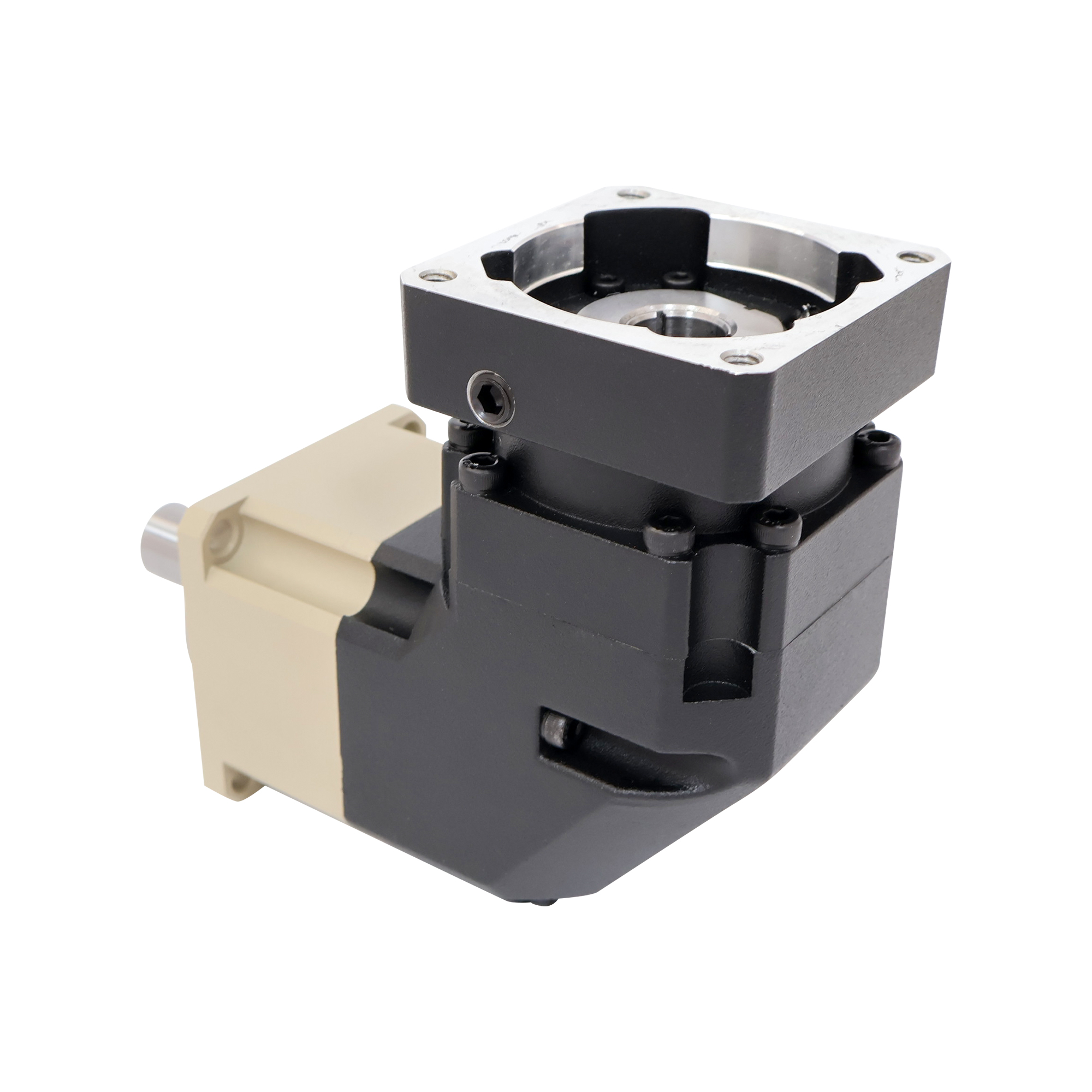

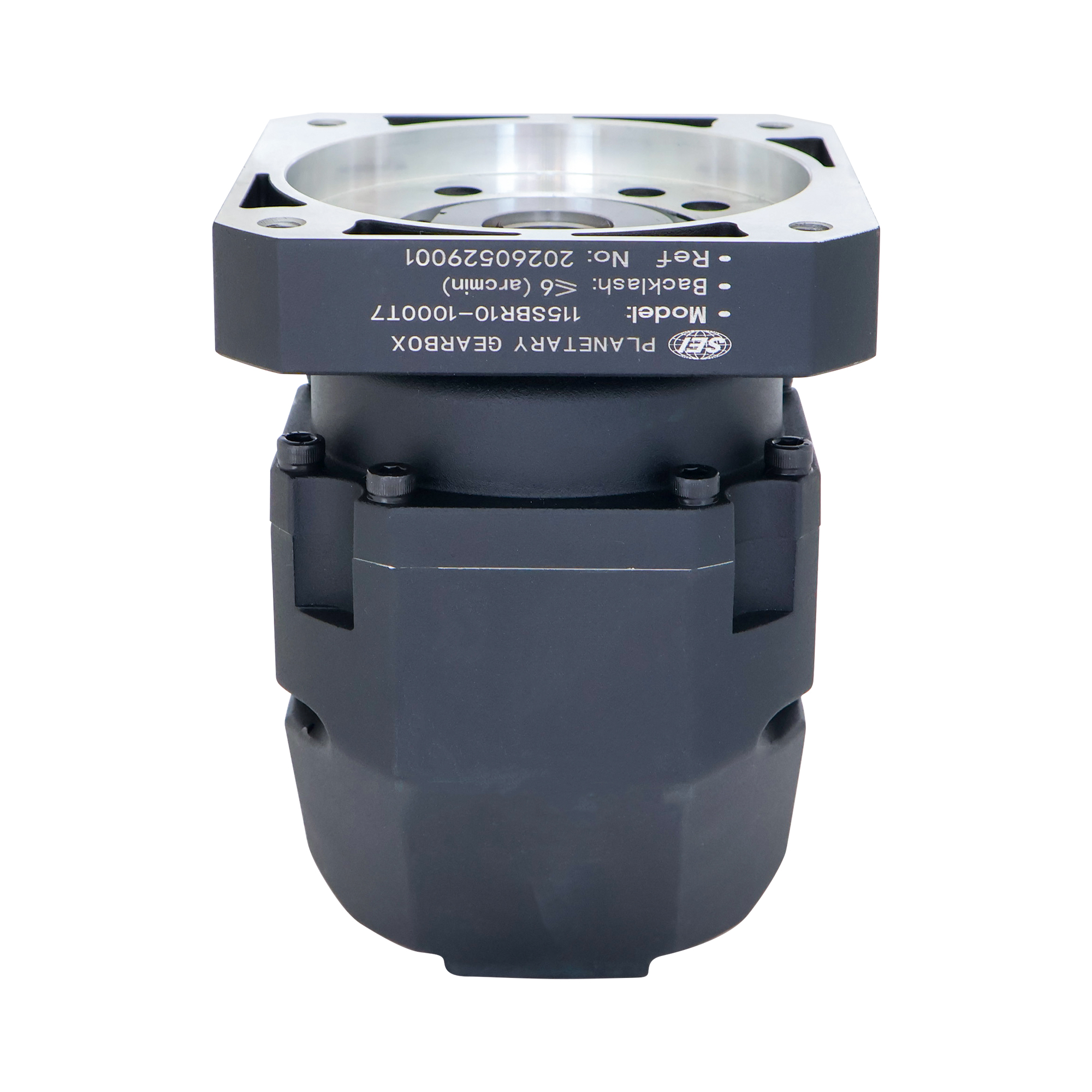

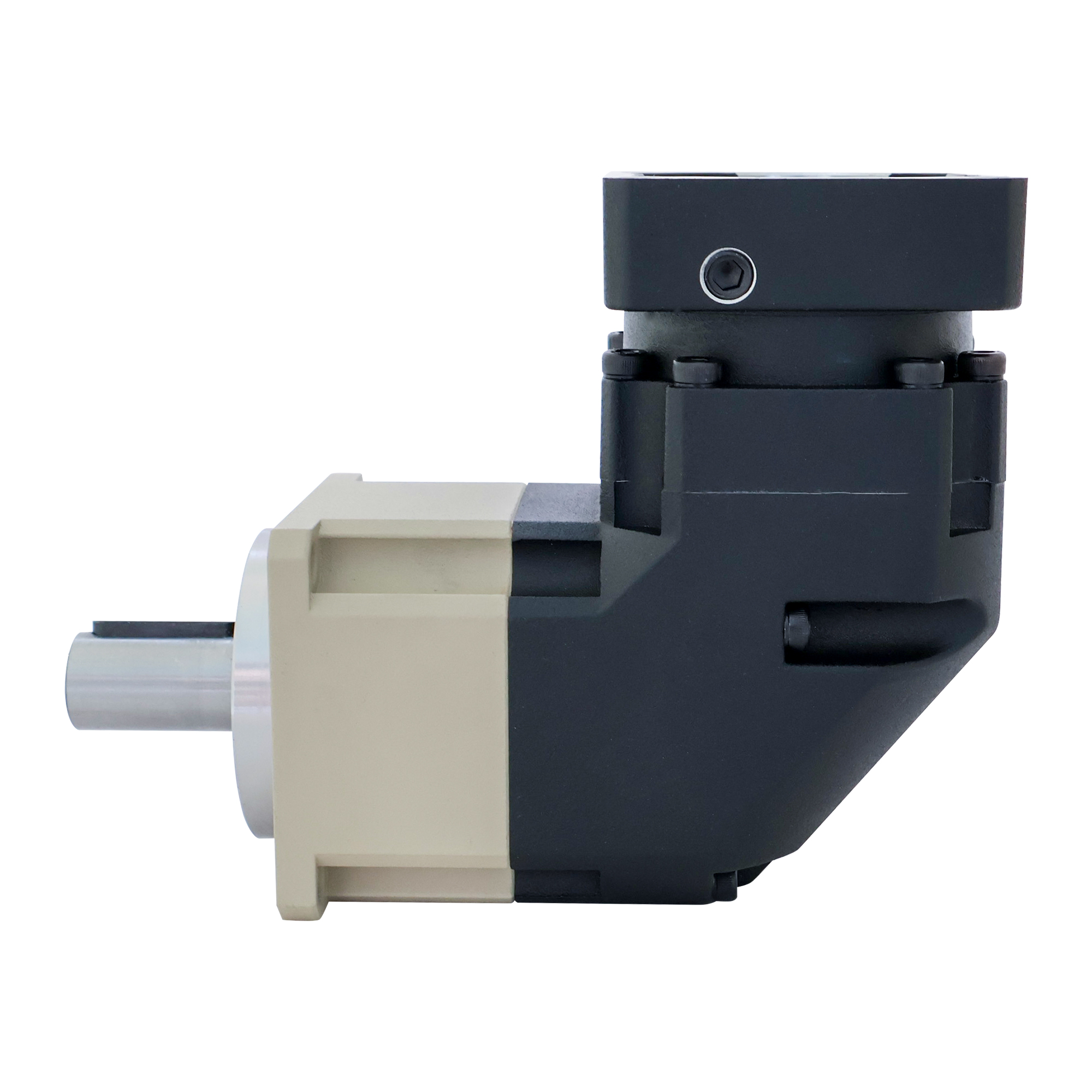

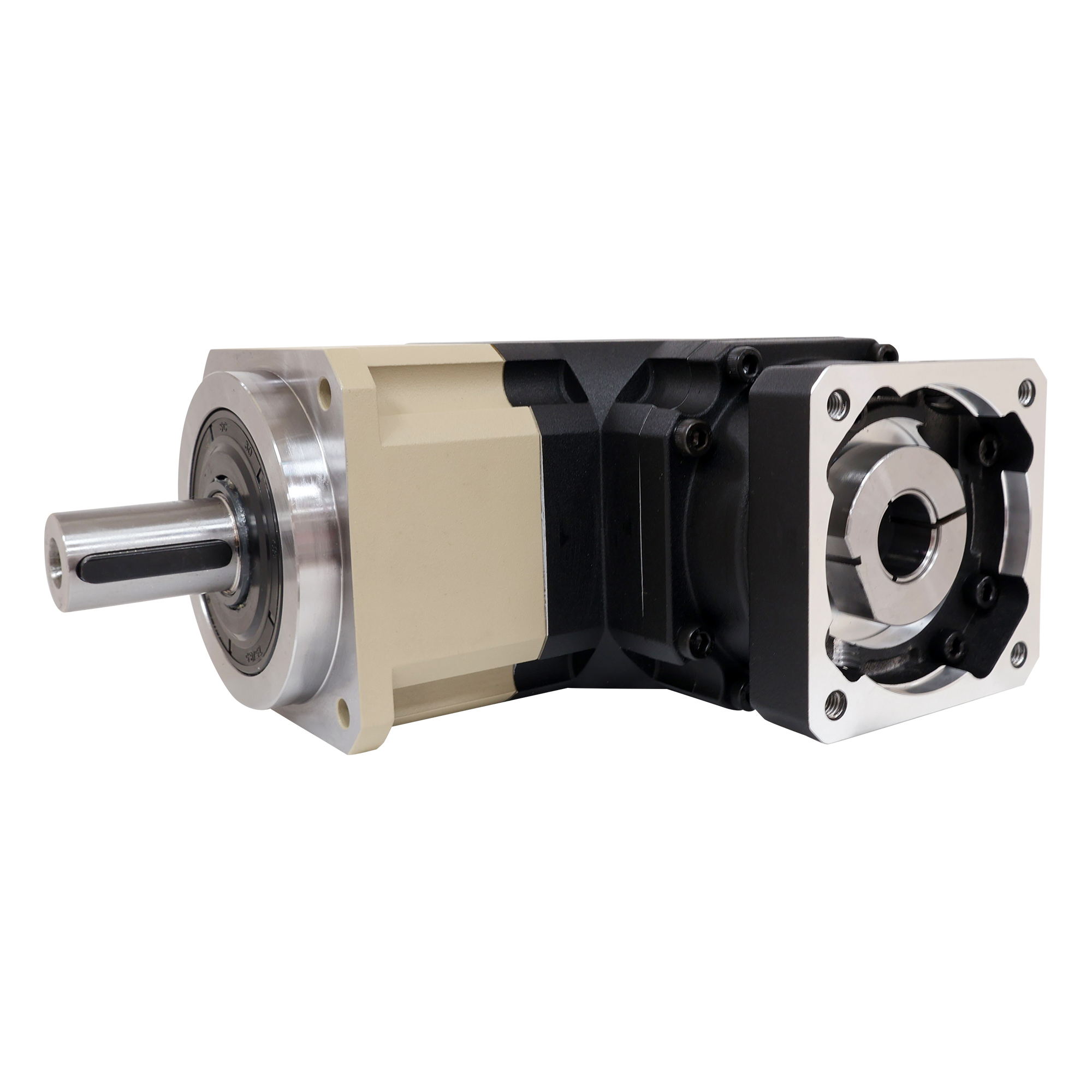

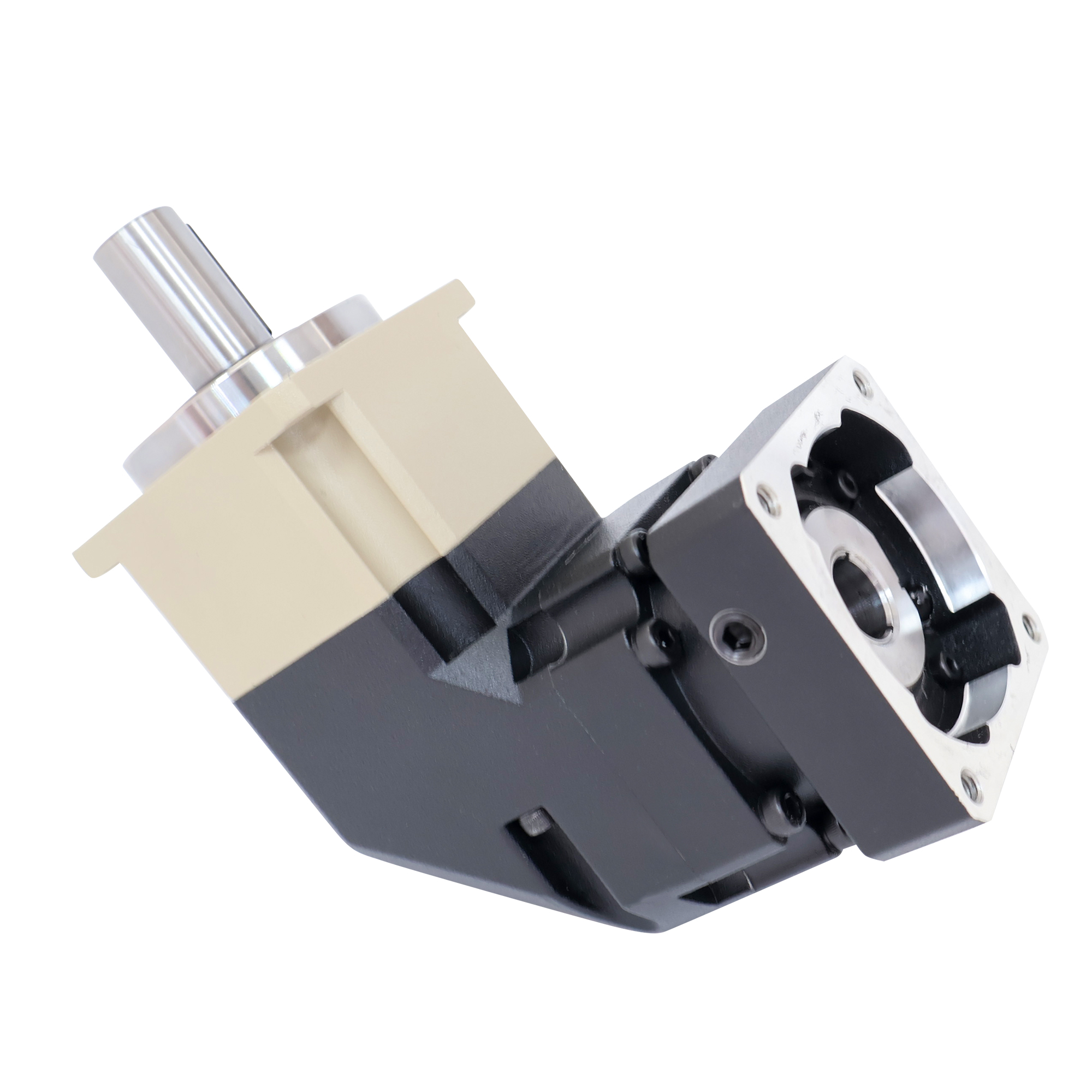

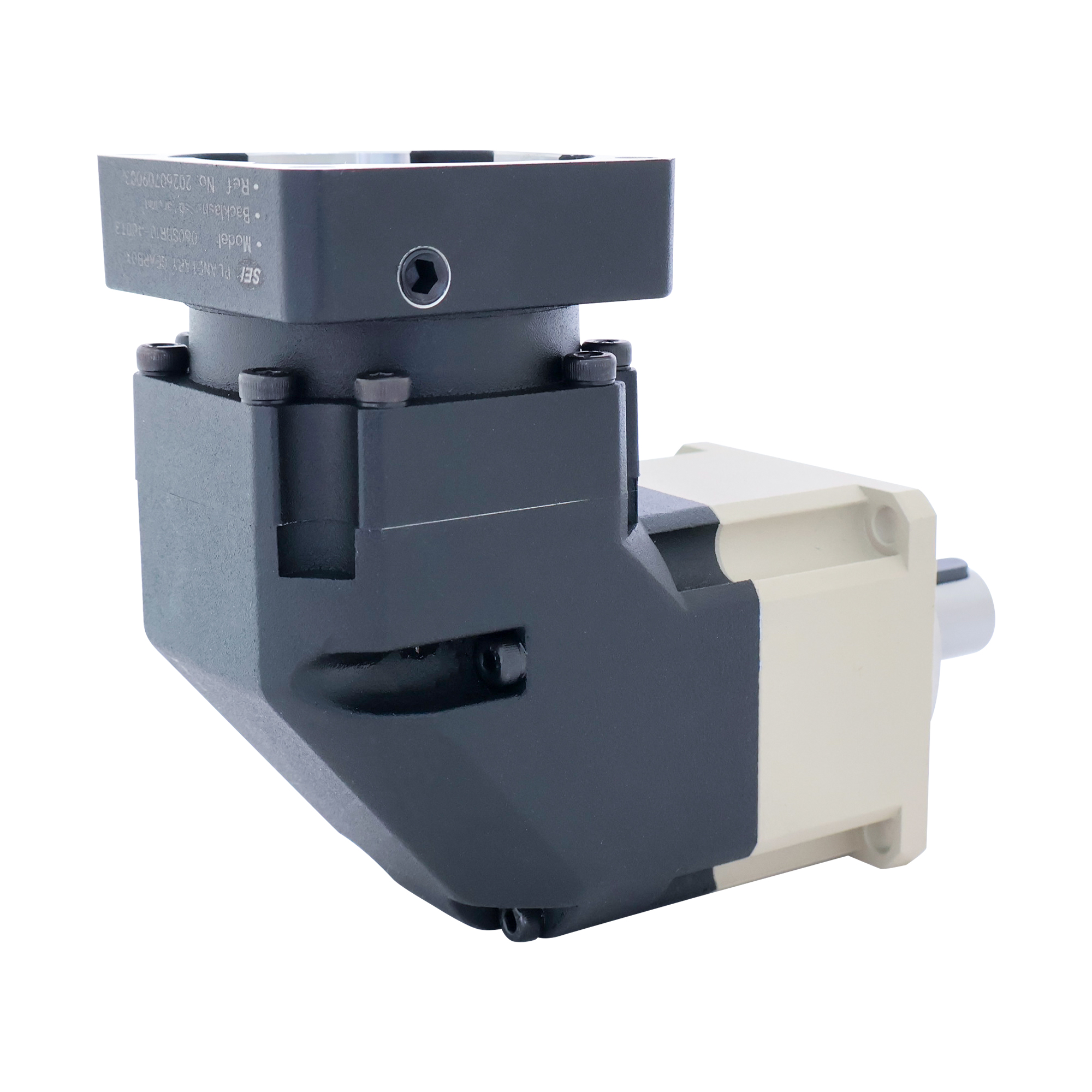

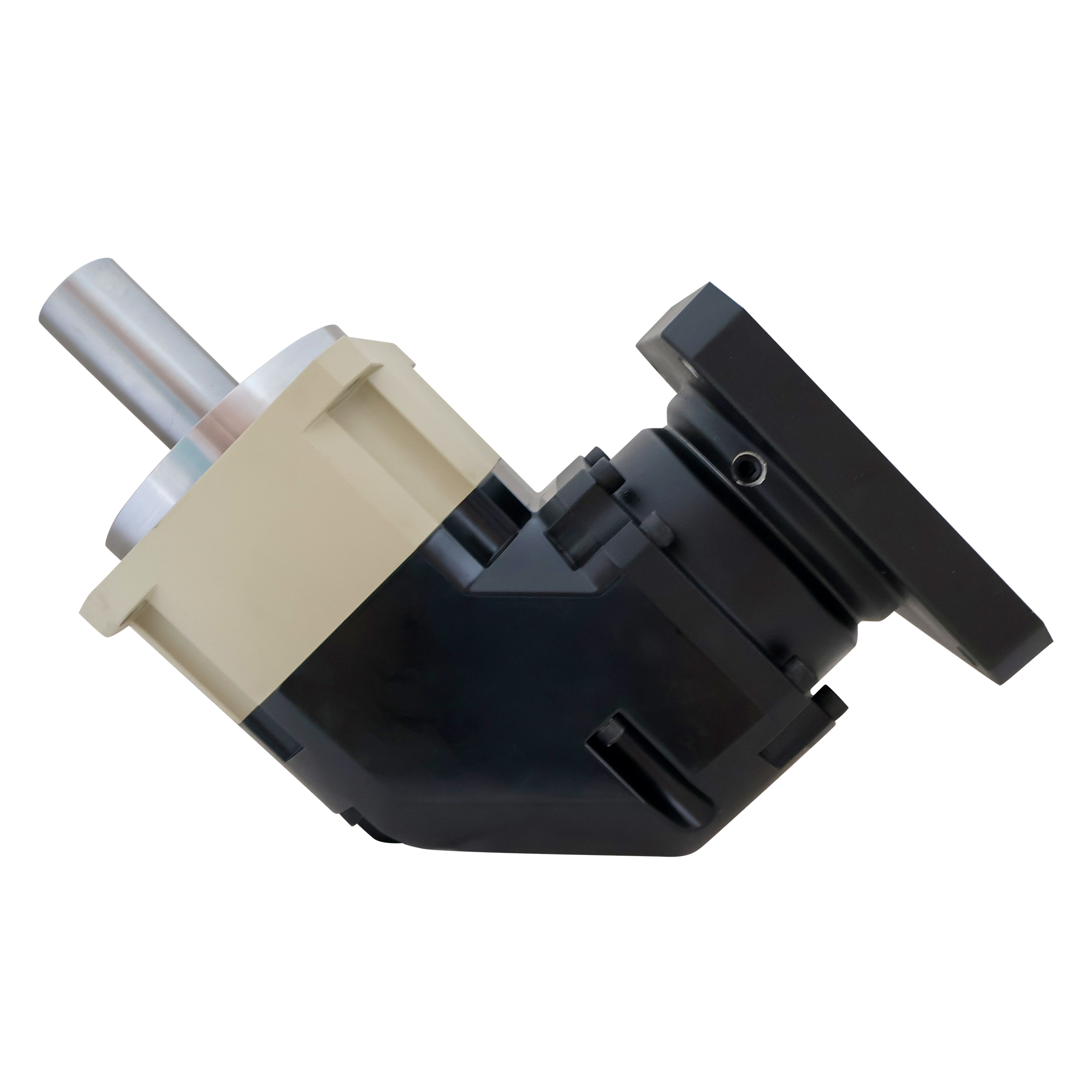

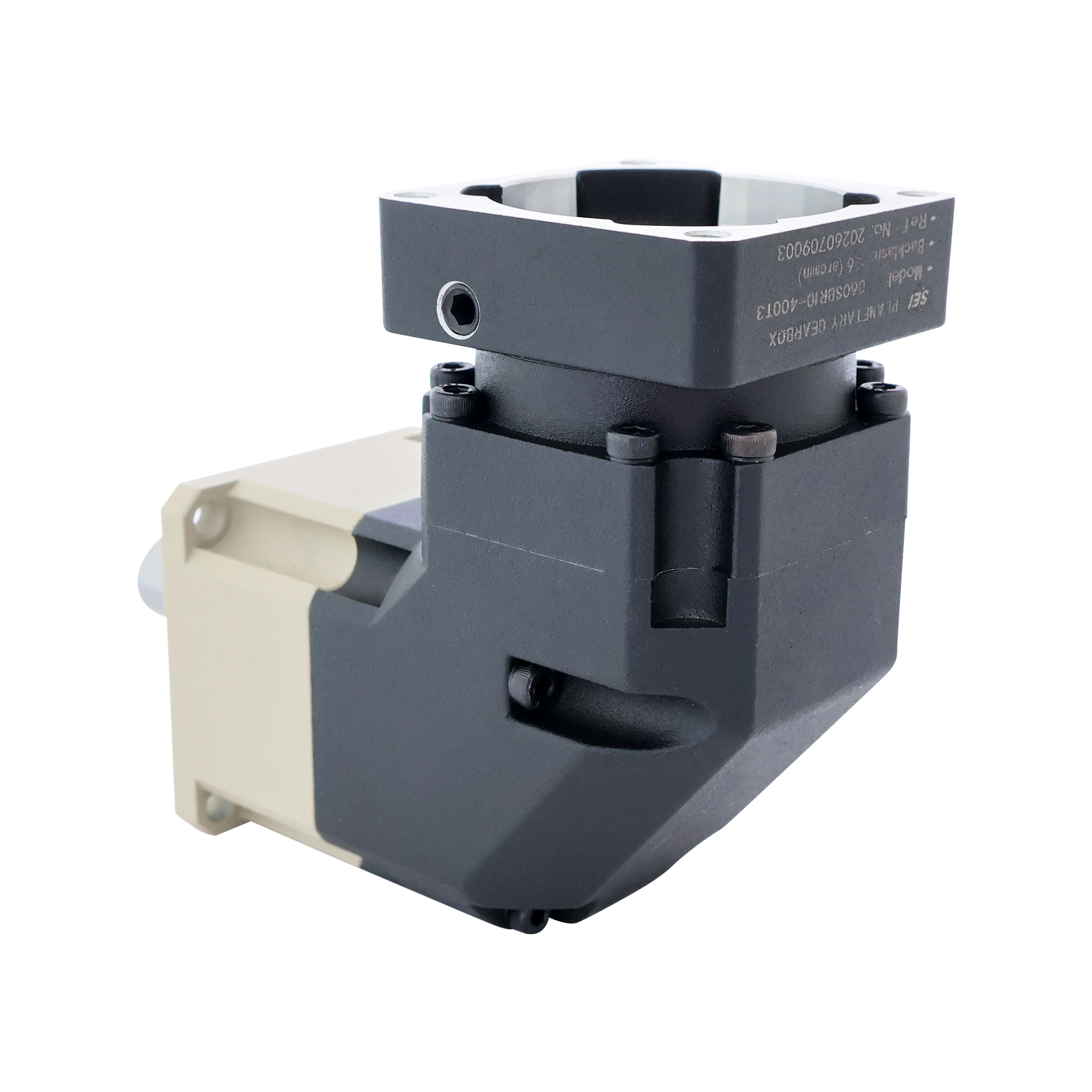

SBR Series 060 planetary gearbox, front view

Key Features

check_circleRight-angle output with integrated bevel stage for 90° power transmission
check_circleSuper precision backlash P0: ≤4 arcmin
check_circlePrecision backlash P1: ≤6–7 arcmin
check_circleStandard backlash P2: ≤9 arcmin
check_circleEfficiency ≥94–97% depending on ratio range
check_circleRated input speed: 3,000 rpm standard / 6,000 rpm high speed
check_circleProtection class IP65 with synthetic lubricating grease
check_circleMounting in any direction
check_circleOperating temperature −10°C to +90°C
check_circleContinuous service life rated at 20,000 hours
check_circleNoise ≤63–72 dB(A) at 3000 rpm no load depending on frame size

Frame Size Specifications

Key performance data per frame size. All values based on catalog-rated conditions.

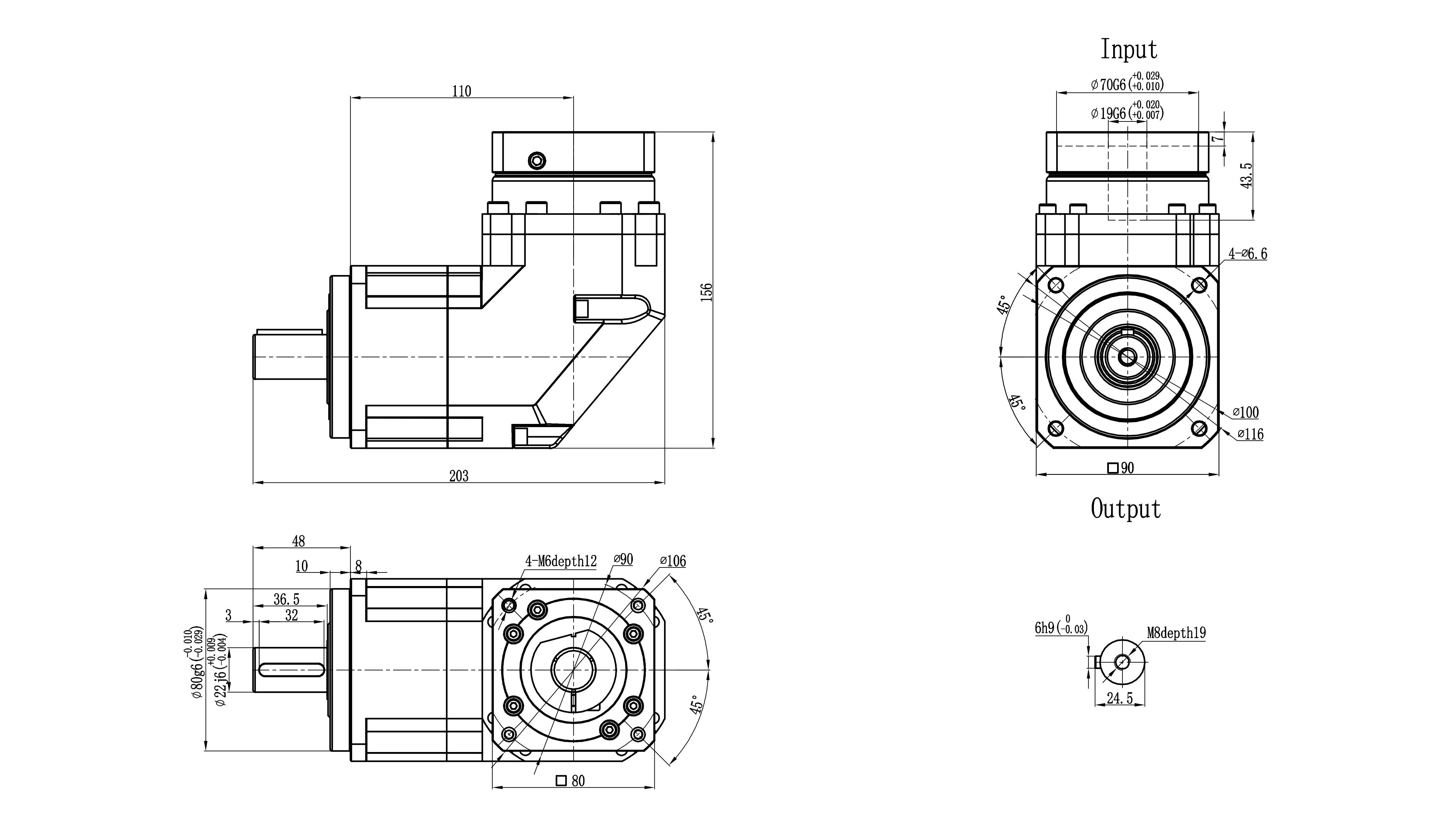

Frame Size	Flange ⌀	Body Length	Rated Torque Range	Weight	Noise Level

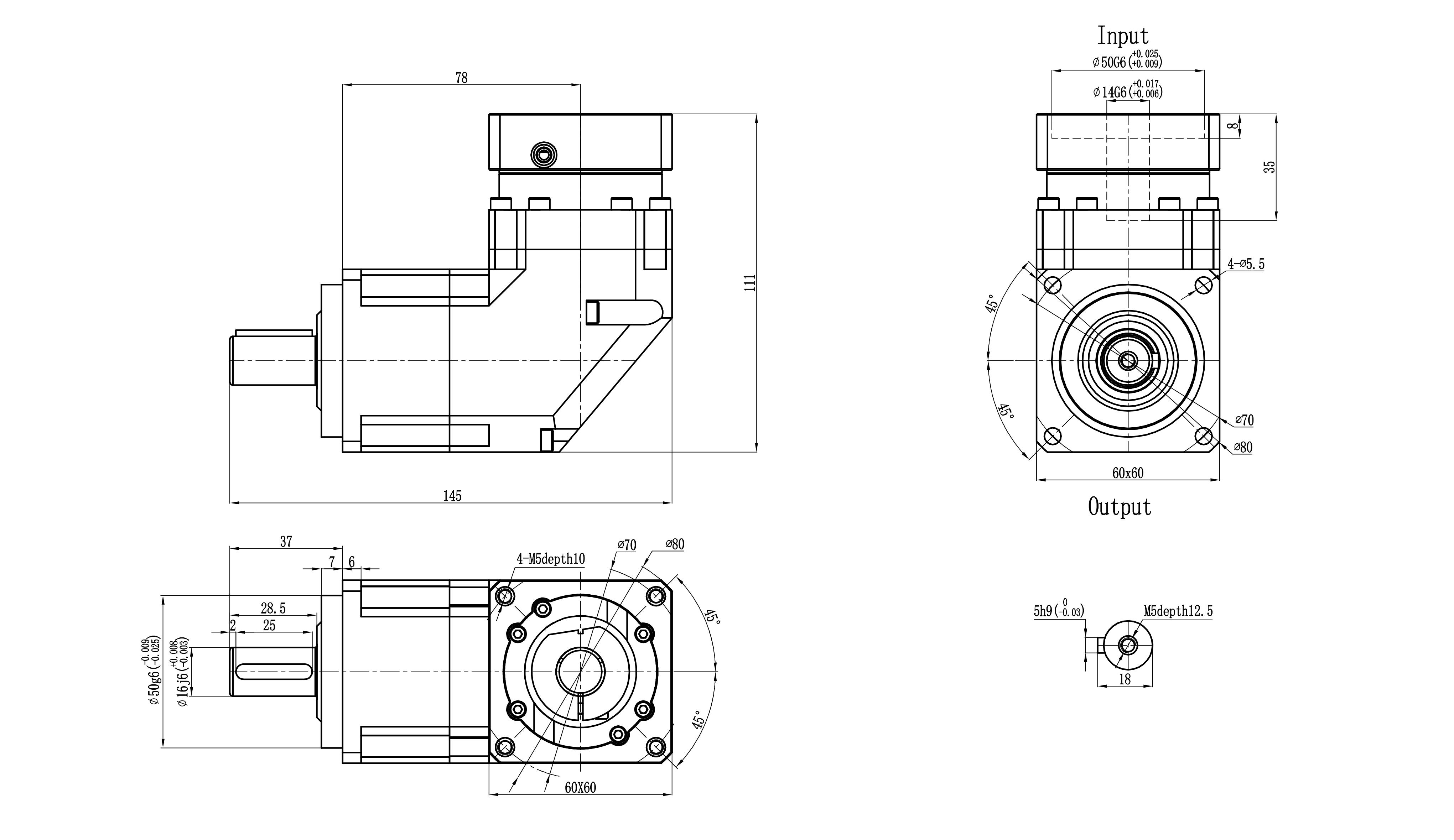

060	80 mm	130 mm	70–90 Nm	3.5 kg	≤63 dB(A)
090	116 mm	182 mm	130–230 Nm	8.5 kg	≤65 dB(A)

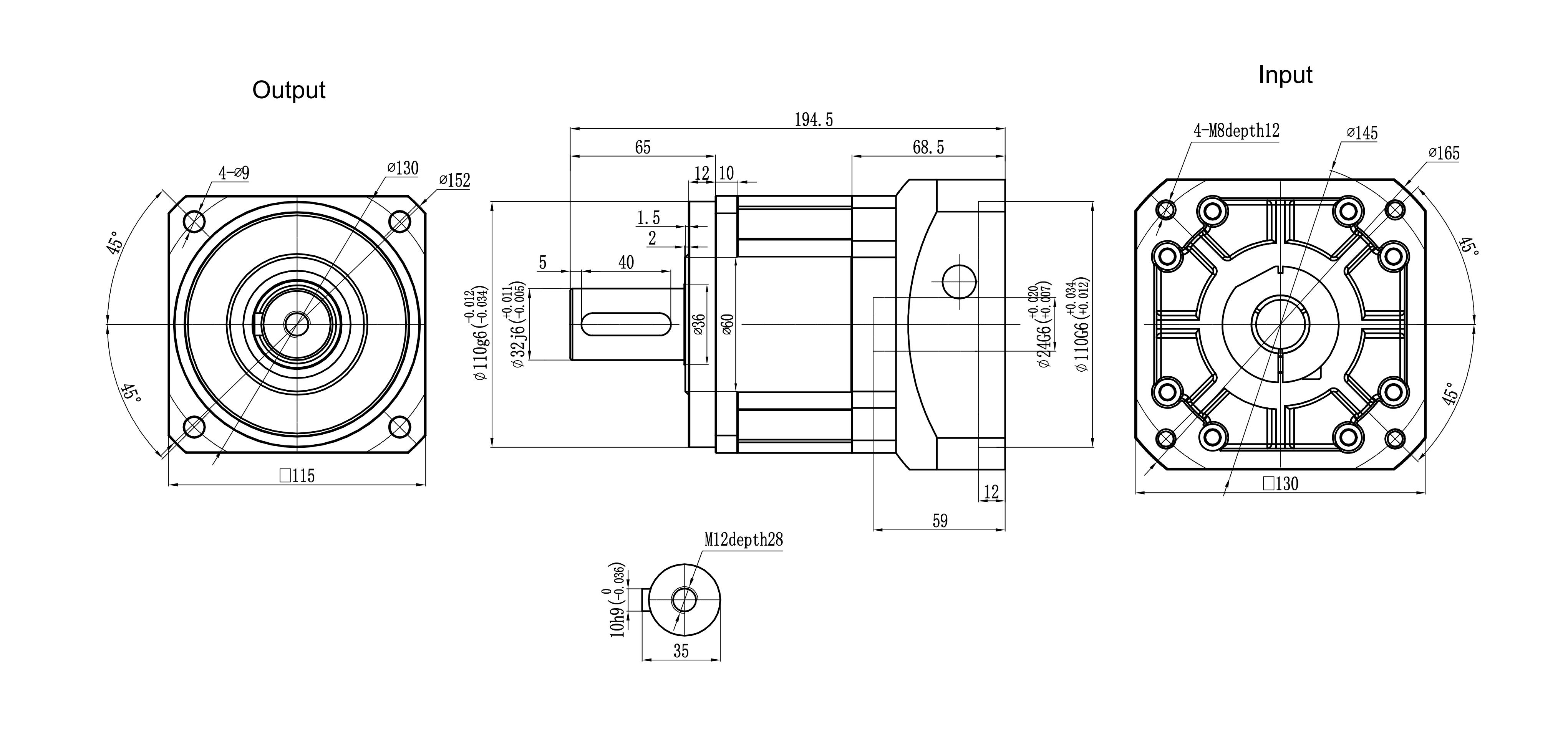

115	152 mm	228 mm	270–450 Nm	16 kg	≤67 dB(A)

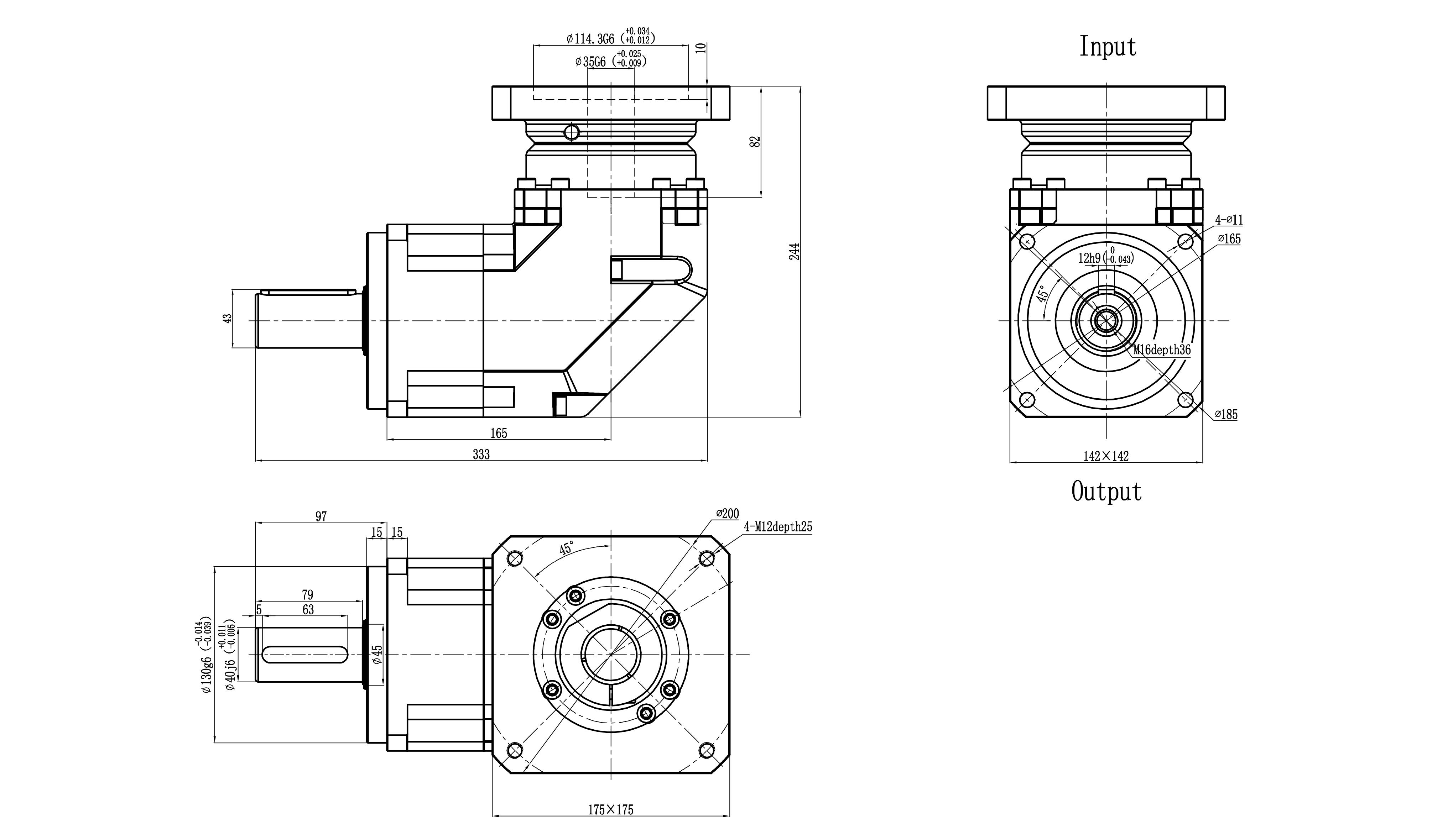

142	185 mm	282 mm	450–900 Nm	28 kg	≤70 dB(A)
180	240 mm	348 mm	700–1,500 Nm	52 kg	≤71 dB(A)
220	292 mm	428 mm	1,200–2,000 Nm	85 kg	≤72 dB(A)
